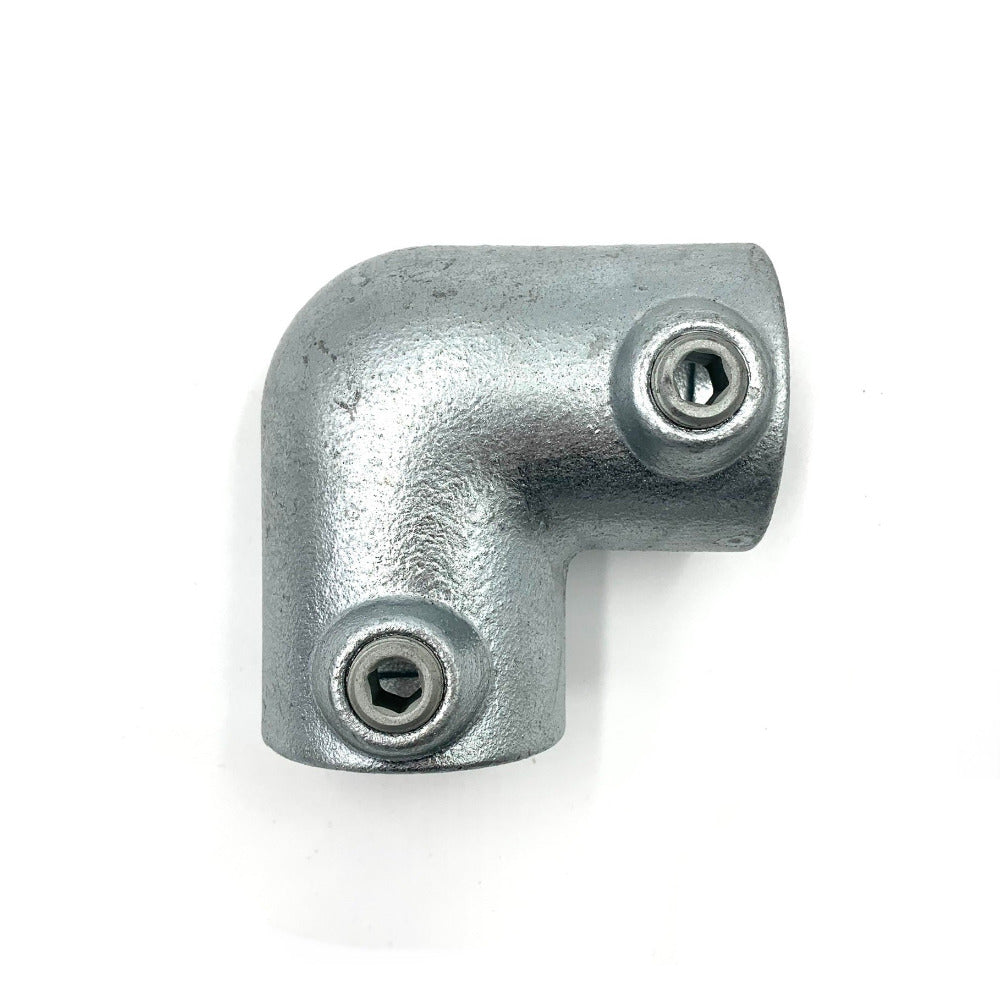

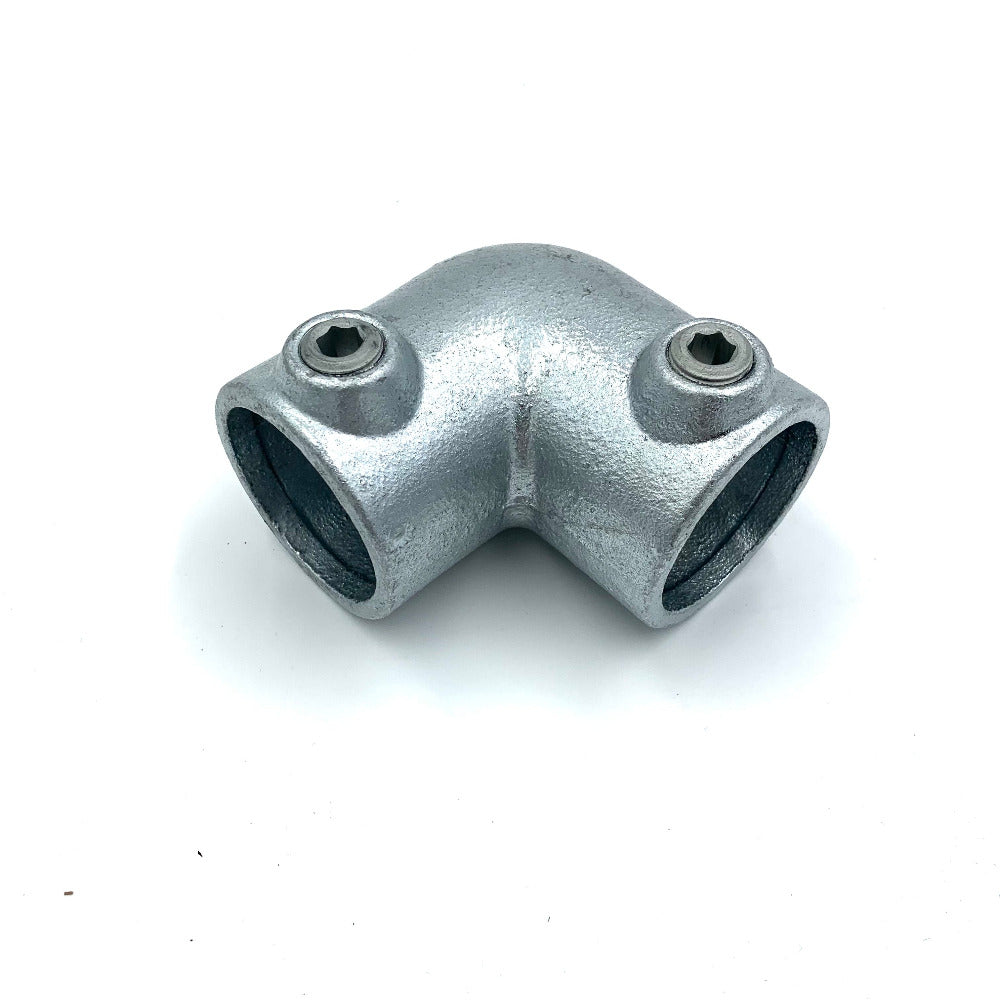

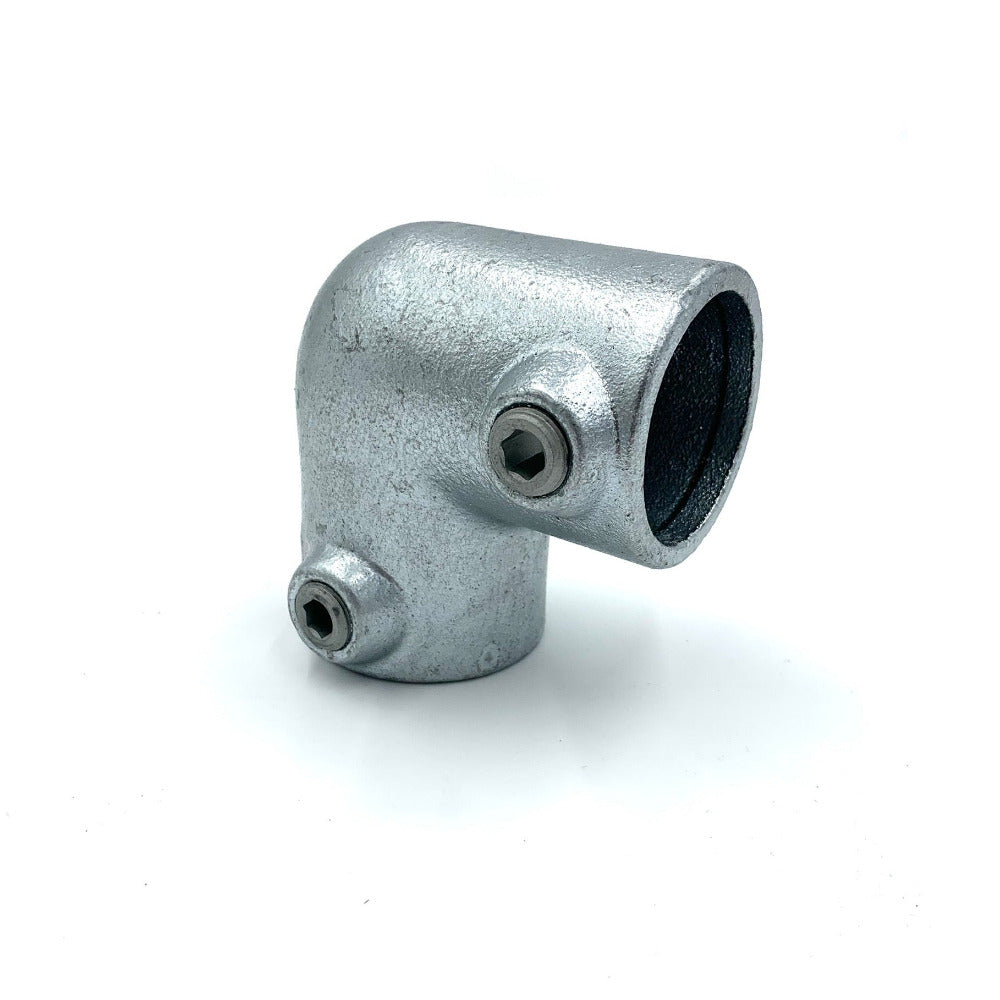

Scaffold Tube Clamp - 90 Degree Elbow (STC125)

The Tube Clamp

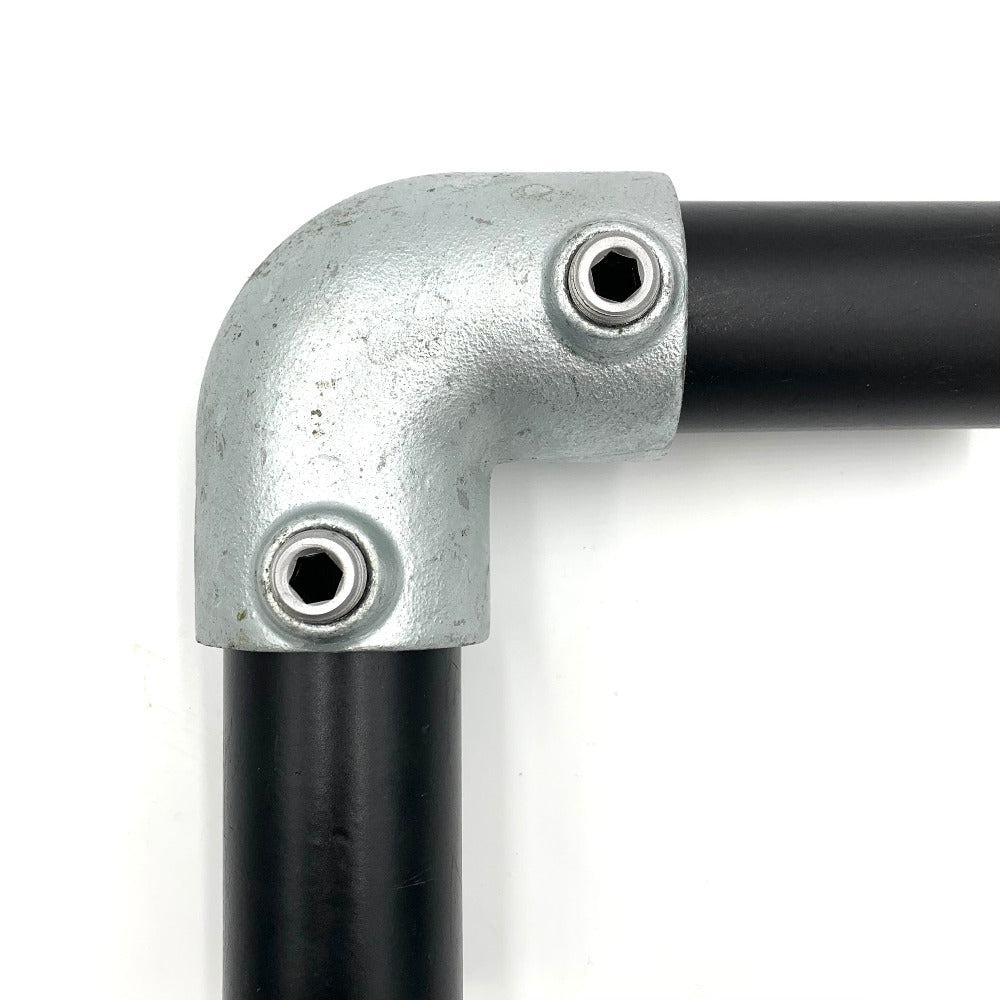

A 90° elbow connection between two tubes, typical use is on straight and level rail to connect the vertical post to the top rail. It is normally used in conjunction with STC101 when building a two rail guardrail system or creating a 90° tube bend.

Our tube clamp fittings and connectors are ideal for joining our Scaffold Tubes to make a massive range of potential designs, from table frames to gym equipment and more.

Item Specifications

This listing is for a 90° elbow, scaffold tube clamp. For scaffold tubes, please click here. Stainless steel grub screws included.

Grade: Blackheart malleable iron casting manufactured to BS EN 1562:1997 using grade B32-10 material with a hot dipped galvanised finish to BS EN 1461:1999.
Material: Galvanised iron
Dimensions (approx): To fit a 48.3mm diameter tube
Item No: STC125

Shipping

Shipping is calculated at checkout. To see an estimate for shipping, please add the required items to your basket, view your basket, then click "Get shipping estimates". You are also welcome to collect from our Frome (Somerset) shop for no charge, this option is available at checkout.

Please note

- Additional dimensions information can be provided on request.
- May also be known as key clamp, Q clamp, Interclamp.
