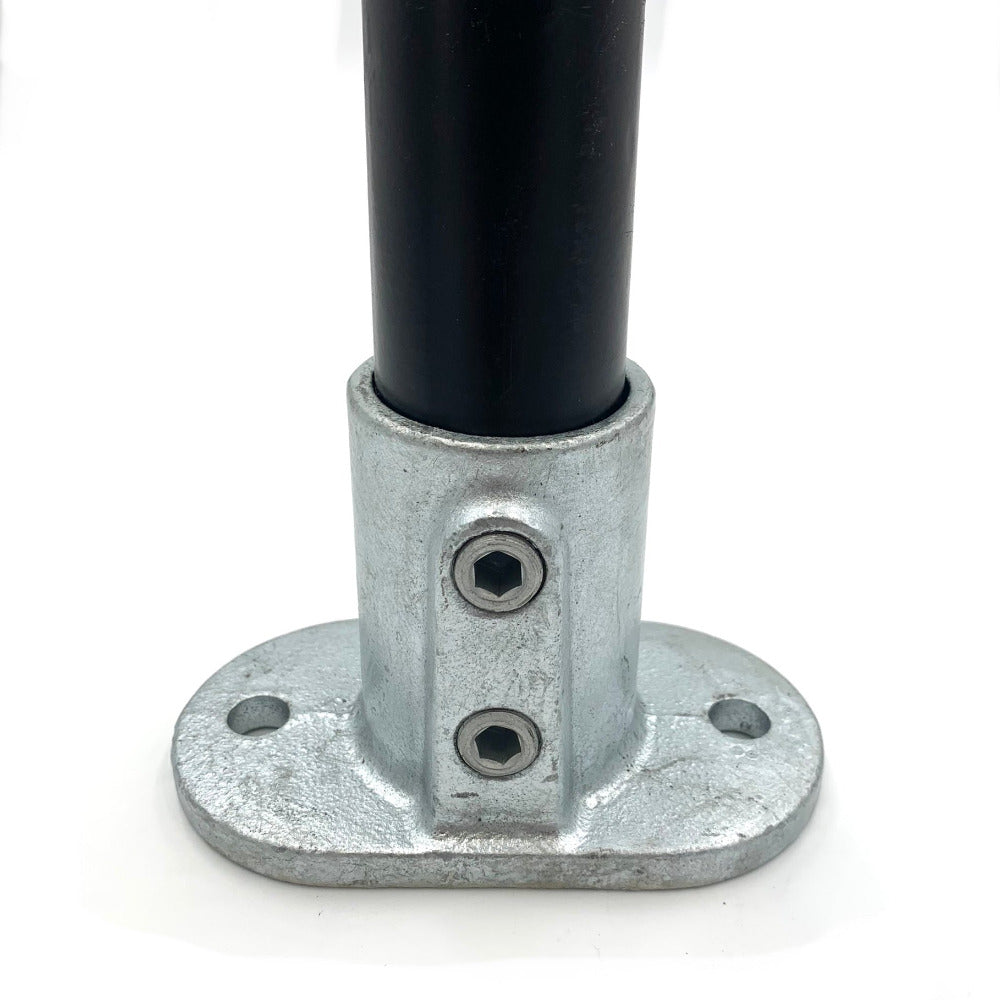

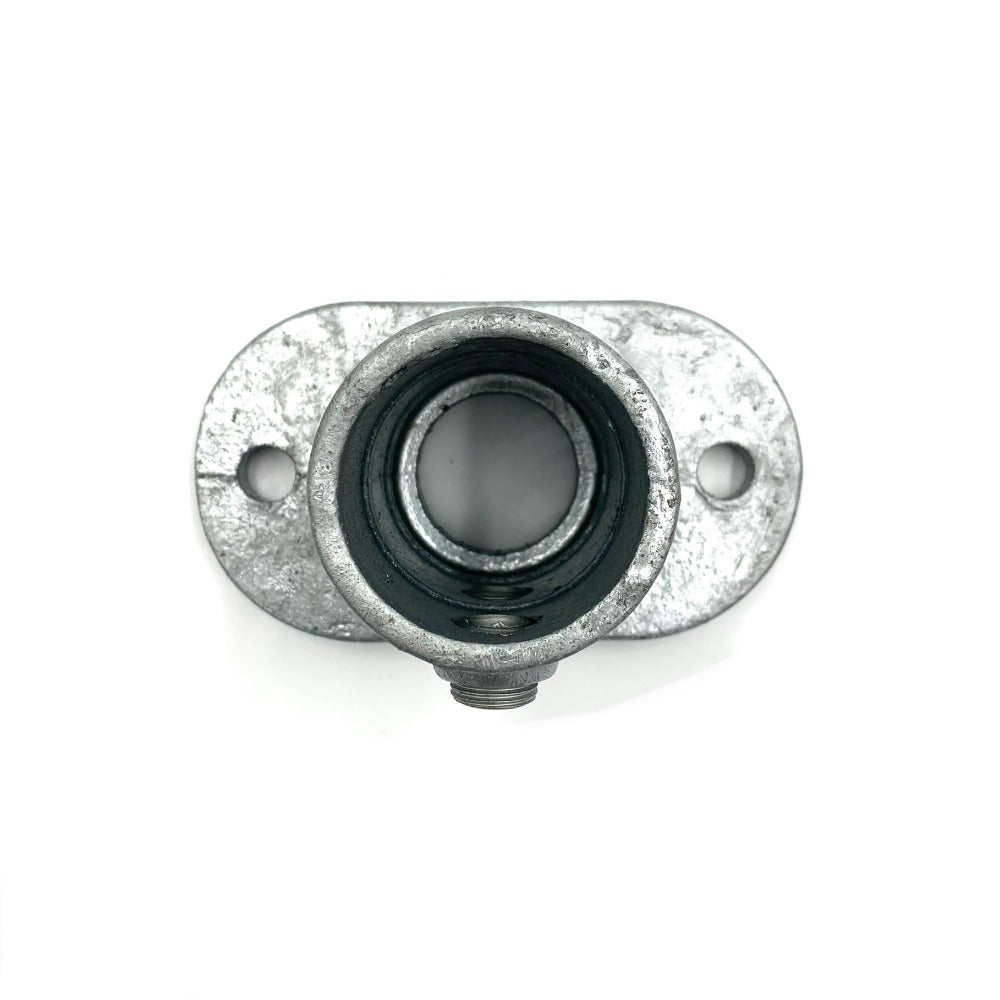

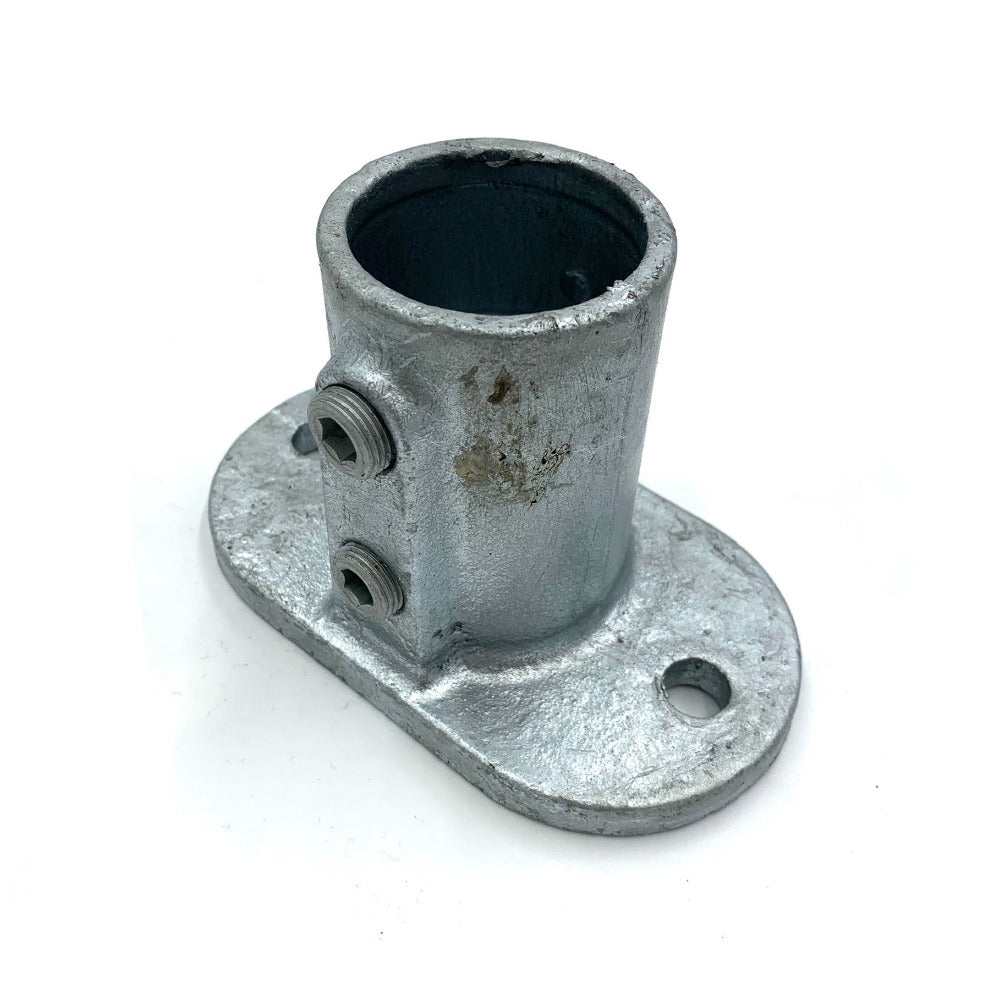

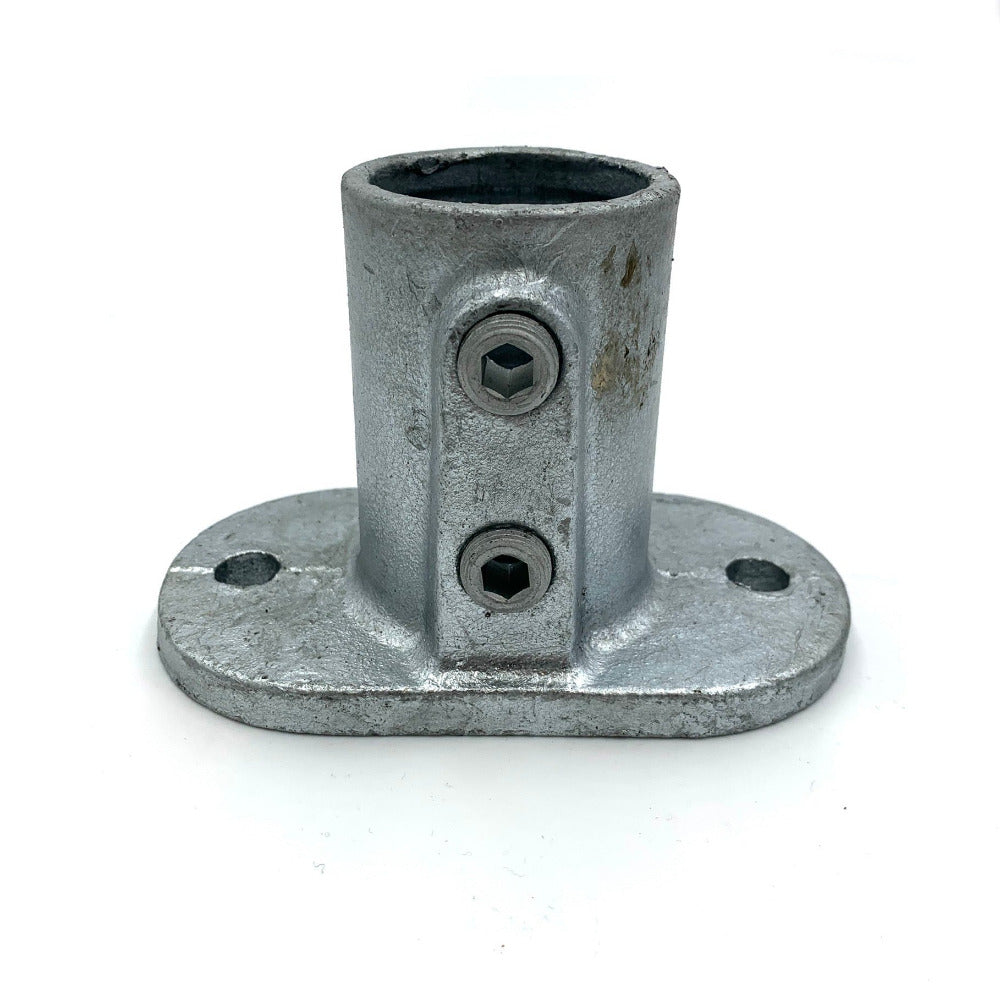

Scaffold Tube Clamp - Oval Base Flange (STC-132)

The Tube Clamp

A structural base plate for all aspects of vertical post support. When using this fitting as the base plate for a guardrail system the fitting should be positioned with holes 90° to the line of the rails to give maximum stability.

Our tube clamp fittings and connectors are ideal for joining our Scaffold Tubes to make a massive range of potential designs, from table frames to gym equipment and more.

Item Specifications

This listing is for a oval base flange, scaffold tube clamp. For scaffold tubes, please click here. Stainless steel grub screws included.

Grade: Blackheart malleable iron casting manufactured to BS EN 1562:1997 using grade B32-10 material with a hot dipped galvanised finish to BS EN 1461:1999.
Material: Galvanised iron
Dimensions (approx): To fit a 48.3mm and 33.7mm diameter tube
Item No: STC-132

Shipping

Shipping is calculated at checkout. To see an estimate for shipping, please add the required items to your basket, view your basket, then click "Get shipping estimates". You are also welcome to collect from our Frome (Somerset) shop for no charge, this option is available at checkout.

Please note

- Additional dimensions information can be provided on request.
- May also be known as key clamp, Q clamp, Interclamp.
