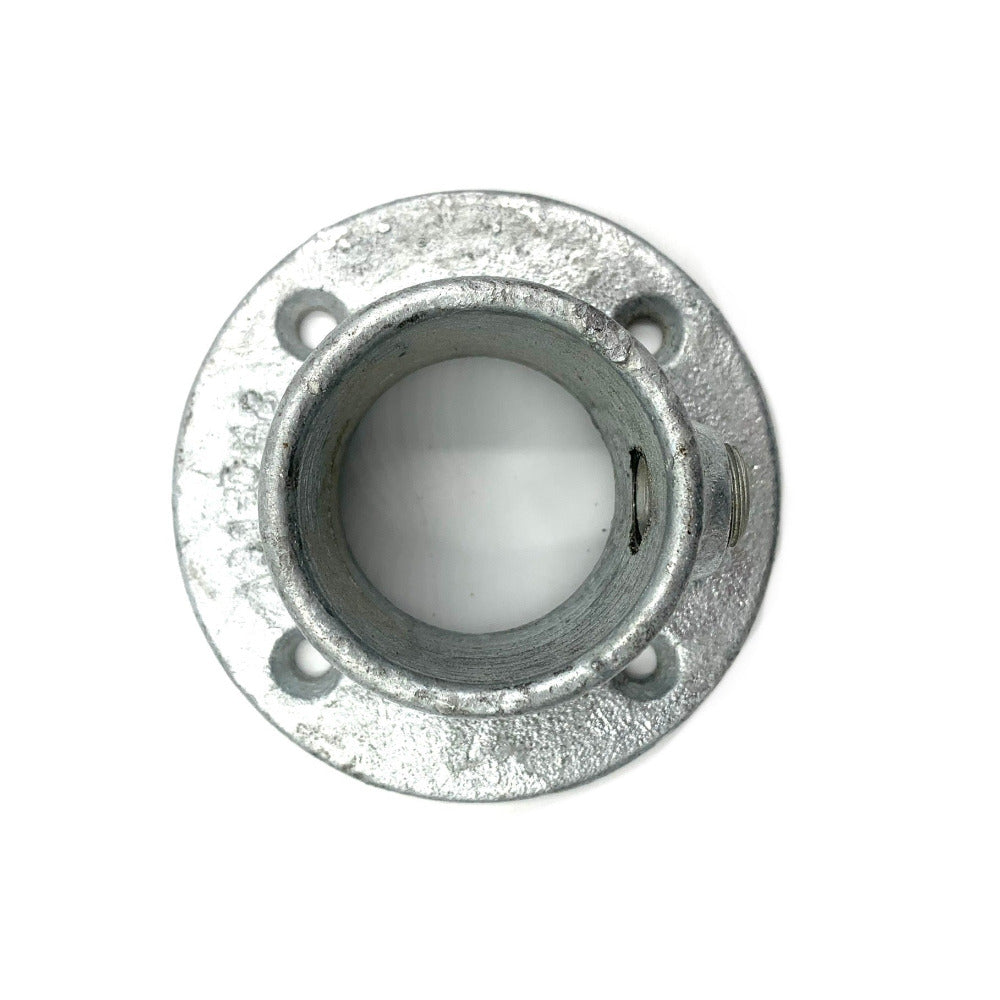

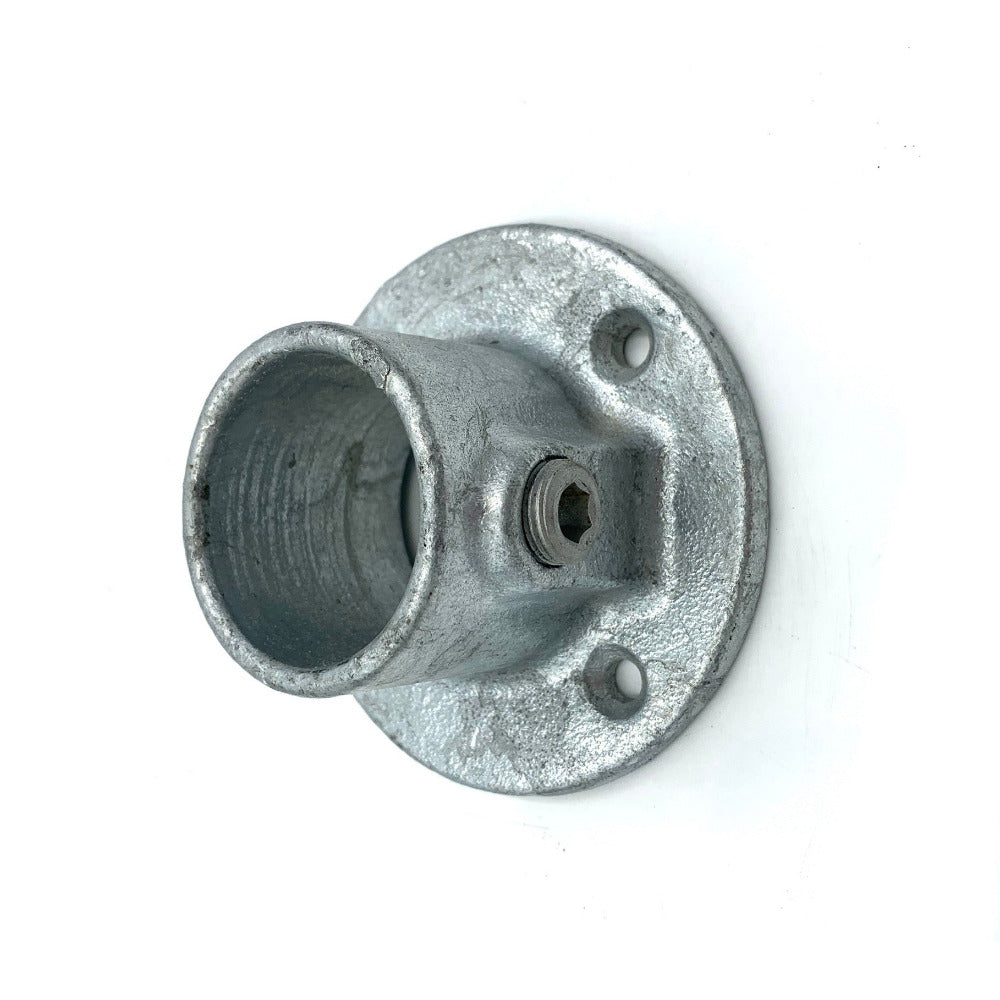

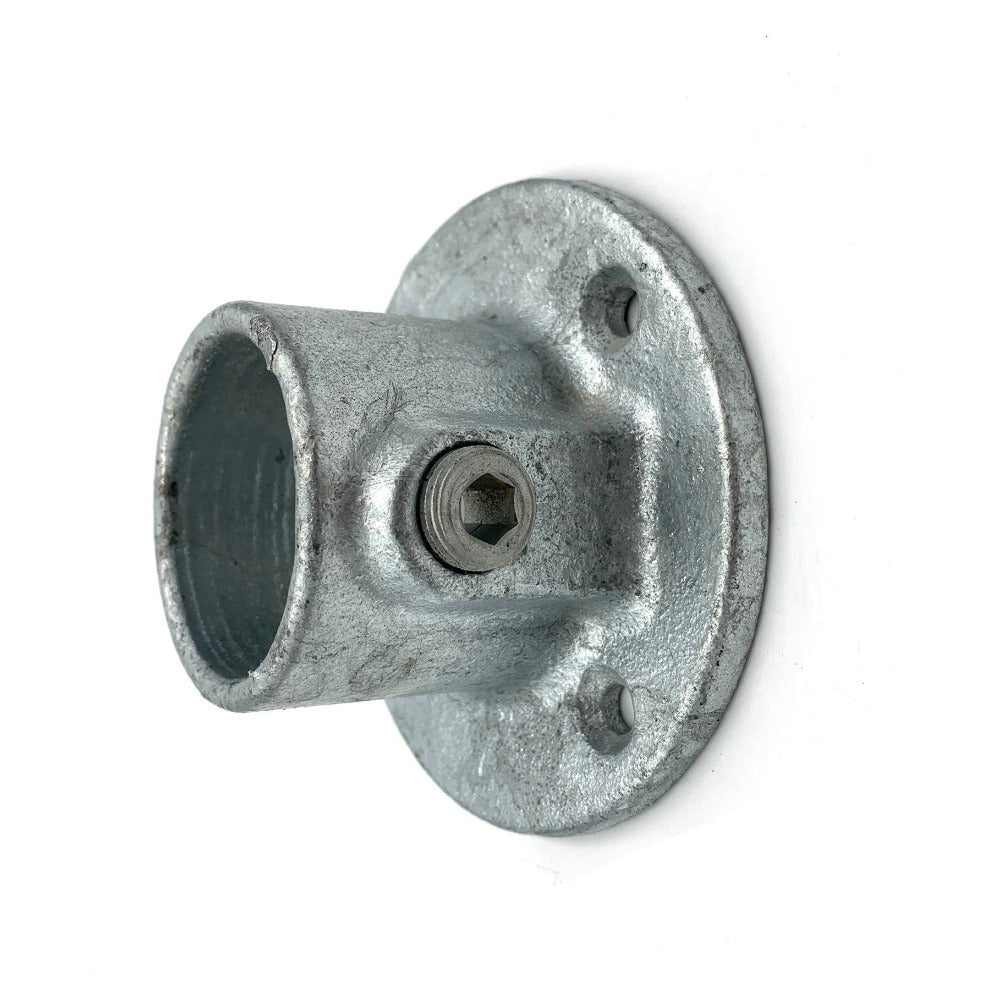

Scaffold Tube Clamp - Wall Flange (STC131)

The Tube Clamp

The design is ideal as a flange for terminating rails to a wall or similar structures. It can be used as a base flange for non load bearing structure. It is not recommended for use as a base plate or in load bearing applications.

Our tube clamp fittings and connectors are ideal for joining our Scaffold Tubes to make a massive range of potential designs, from table frames to gym equipment and more.

Item Specifications

This listing is for a wall flange, scaffold tube clamp. For scaffold tubes, please click here. Stainless steel grub screws included.

Grade: Blackheart malleable iron casting manufactured to BS EN 1562:1997 using grade B32-10 material with a hot dipped galvanised finish to BS EN 1461:1999.
Material: Galvanised iron
Dimensions (approx): To fit a 48.3mm diameter tube
Item No: STC131

Shipping

Shipping is calculated at checkout. To see an estimate for shipping, please add the required items to your basket, view your basket, then click "Get shipping estimates". You are also welcome to collect from our Frome (Somerset) shop for no charge, this option is available at checkout.

Please note

- Additional dimensions information can be provided on request.
- May also be known as key clamp, Q clamp, Interclamp.
